PROCON PUMP, SERIES 4 (104C240F11BC099)
Brand: Procon
Item # 09H02178
Login for Price and Availability

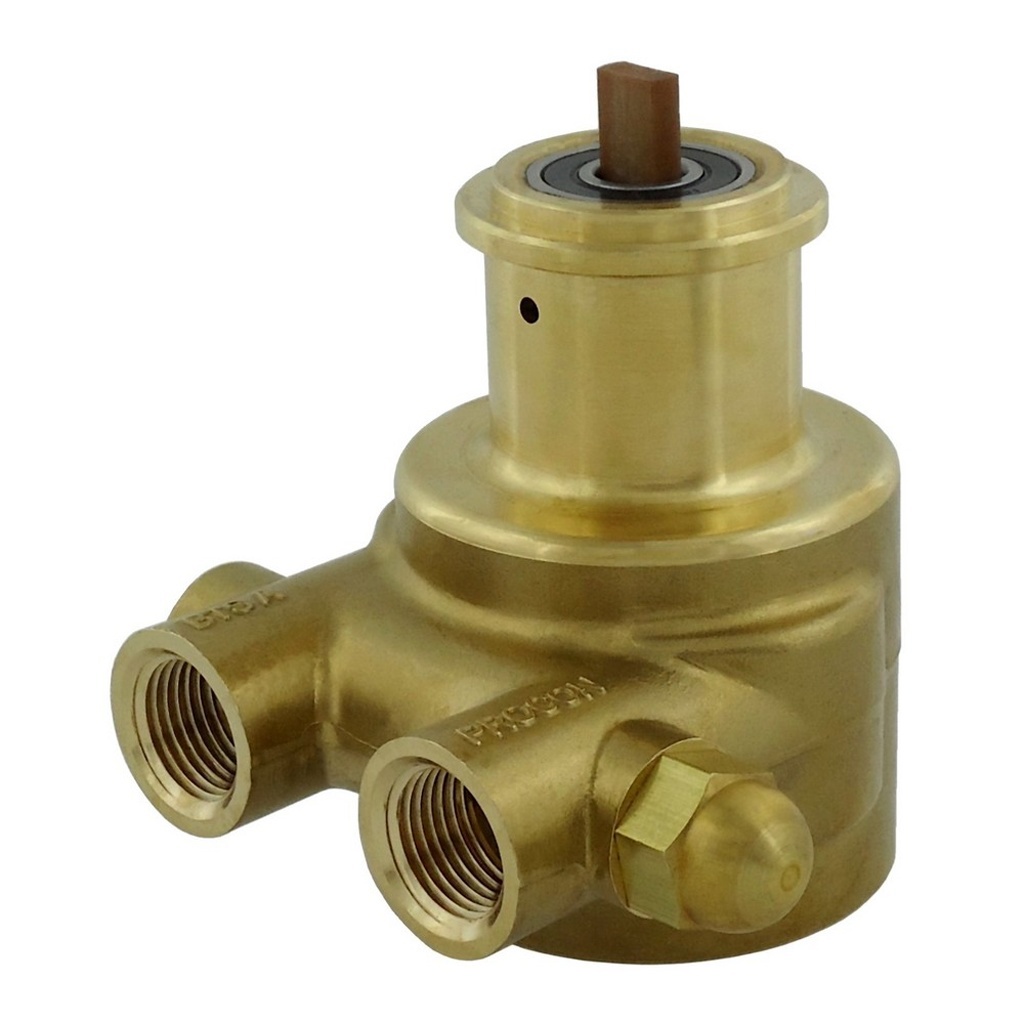

Procon® Rotary Vane Fluid Pump
All pumps have a nominal speed of 1,725 RPM, a maximum discharge pressure of 250 PSI, clockwise rotation, and an adjustable relief range (if available).
Series 4
Manufacturer No: 104C240F11BCF099
Mount: Clamp-On
Drive Coupler: Double Flat Plastic
Flow Rate (GPH): 240 GPH
Seal: Nitrile
Relief Setting: 99 PSI
Capacity: 115 to 330 GPH
Nominal Speed: 1,725 RPM
Max. Discharge Pressure: 250 psi
Rotation: Clockwise
Dry Weight: ~4.5 lbs
Self-Priming (water): 6 ft. max. lift
Series 4 Pumps have a brass body and is design for operating flow rates of 115 GPH to 330GPH. This series is constructed the same as the Series 2 pumps only larger in size. Has 1/2" FPT ports.
330 gph model requires minimum 20 psi inlet pressure.
| Flow Rate (GPH) | : | 240 |
| Mounting | : | Clamp-On |
| Procon Series | : | 4 |
Procon 104C240F11BC099
