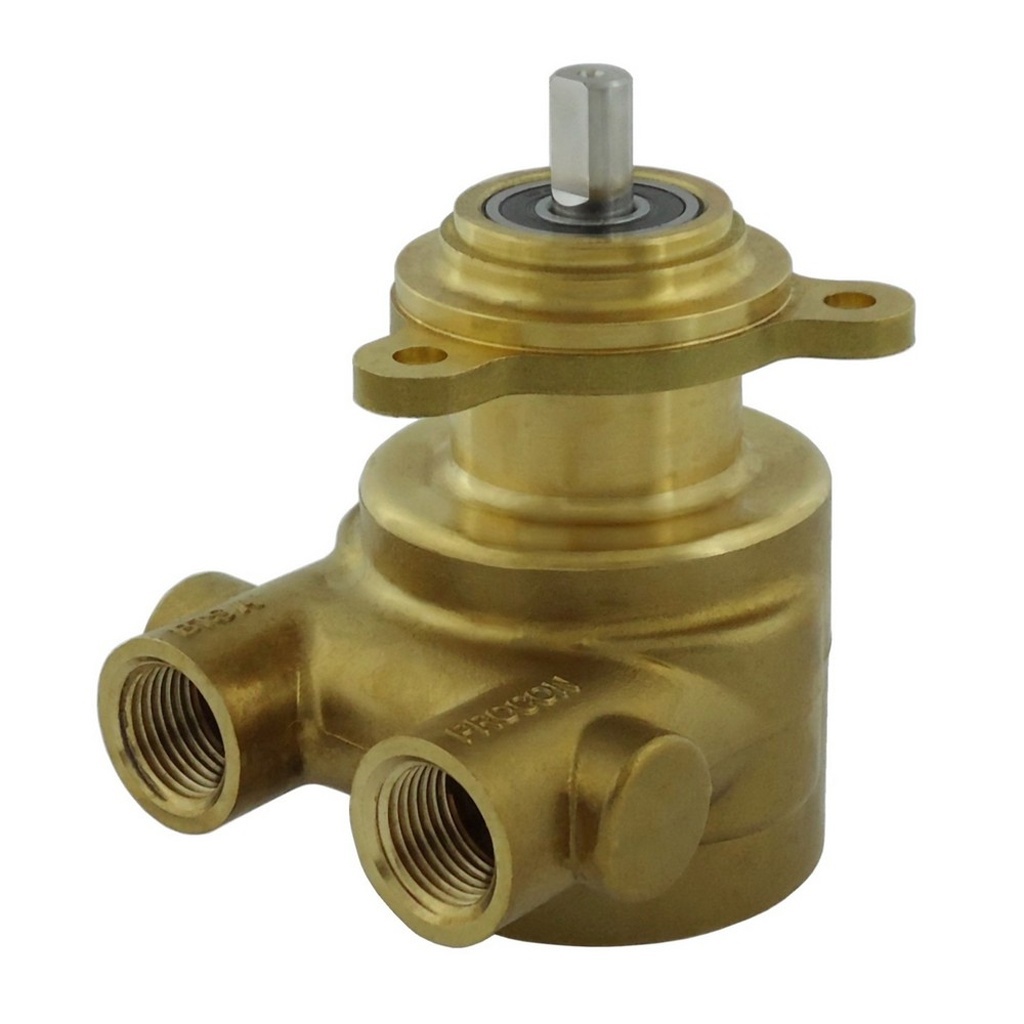

Procon Pump, Series 4 (104E240F11Xx)

Procon® Rotary Vane Fluid Pump
All pumps have a nominal speed of 1,725 RPM, a maximum discharge pressure of 250 PSI, clockwise rotation, and an adjustable relief range (if available).
Series 4
Manufacturer No: 104E240F11XX
Mount: Bolt-On
Drive Coupler: Single Flat S/S
Flow Rate (GPH): 240 GPH
Seal: Nitrile
Relief Setting: No Relief
Capacity: 115 to 330 GPH
Nominal Speed: 1,725 RPM
Max. Discharge Pressure: 250 psi
Rotation: Clockwise
Dry Weight: ~4.5 lbs
Self-Priming (water): 6 ft. max. lift
Series 4 Pumps have a brass body and is design for operating flow rates of 115 GPH to 330GPH. This series is constructed the same as the Series 2 pumps only larger in size. Has 1/2" FPT ports.
330 gph model requires minimum 20 psi inlet pressure.
